Banjo-Kazooie (N64) environments and levels: texture blending and vertex color usage

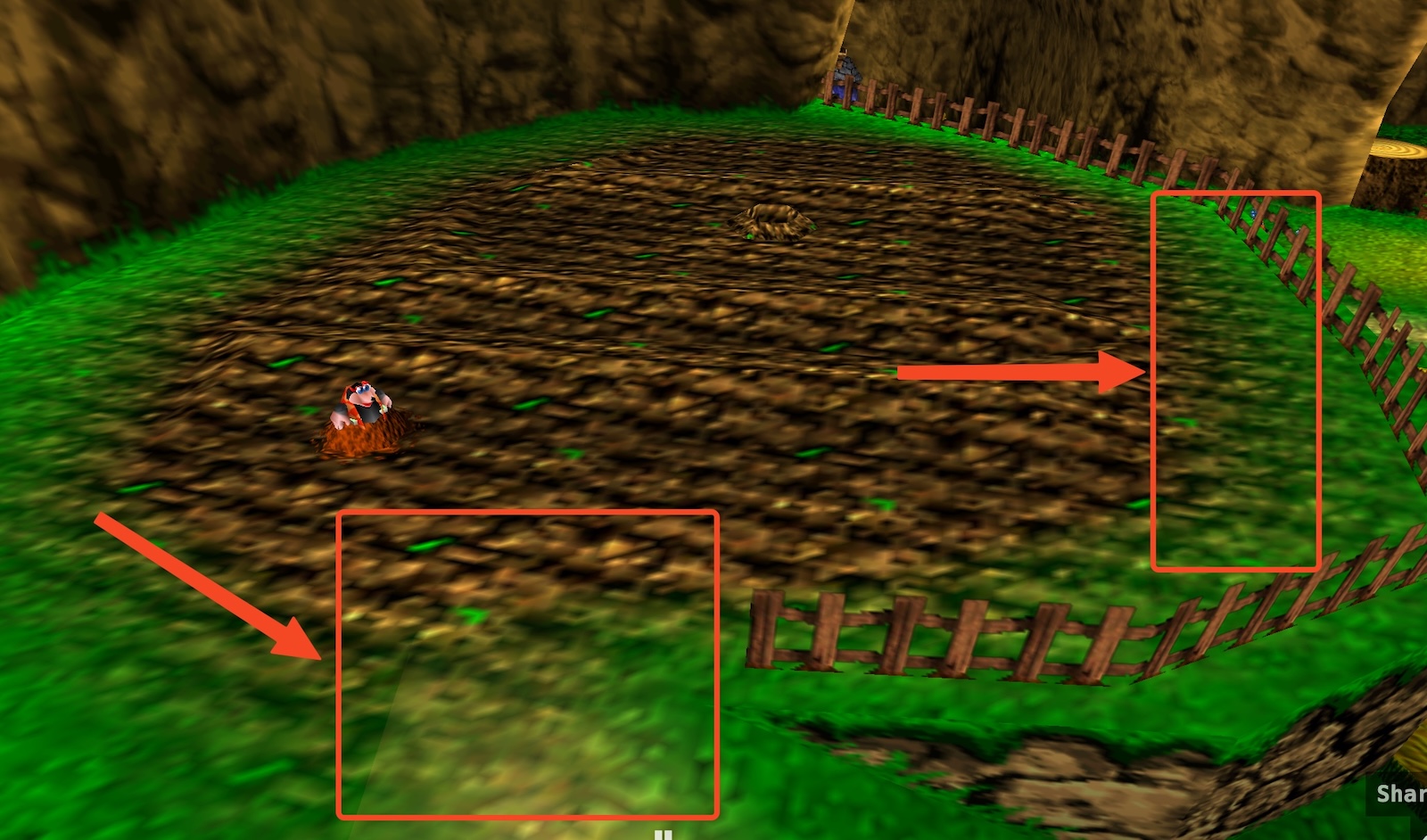

Banjo-Kazooie from the Nintendo 64 had environment and terrain details with blended textures (it is also called decal blending in some sources):

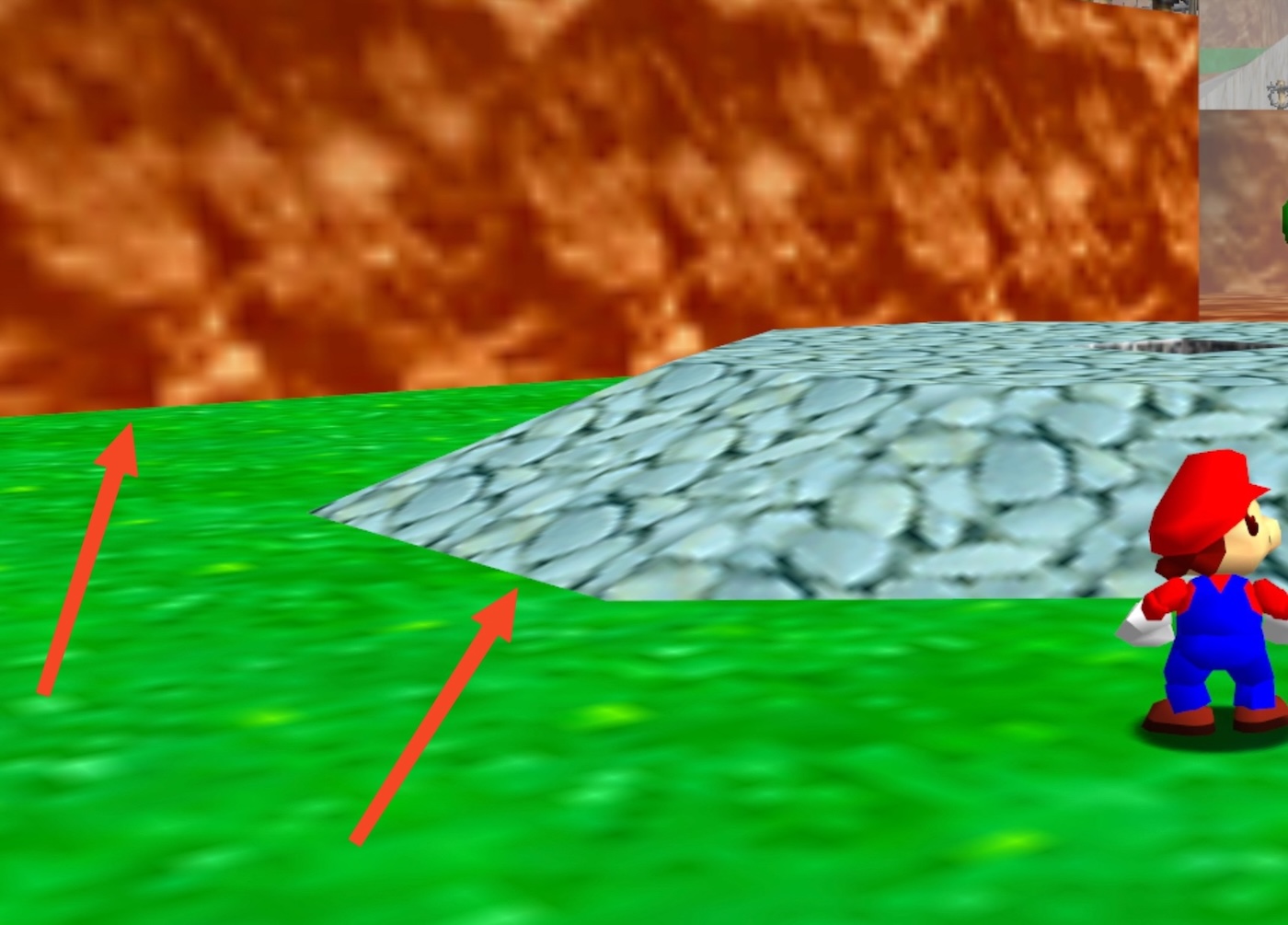

This contrasts with Super Mario 64 where there was a clear separation between each texture:

Banjo Kazooie environments and levels also faked light, shadow and ambient occlusion with vertex colors:

Banjo Kazooie’s Dingpot Teleport Room with vertex colors (from noclip.website)

Banjo Kazooie’s Dingpot Teleport Room without vertex colors (from noclip.website). Notice how everything looks flat without vertex colors.

How did they achieve texture blending?

In Banjo Kazooie, surfaces might have two texture channels, and the blending factor between them is decided by the vertex color alpha.

When disabling vertex colors from the same scene from the first screenshot, this is what the scene looks like:

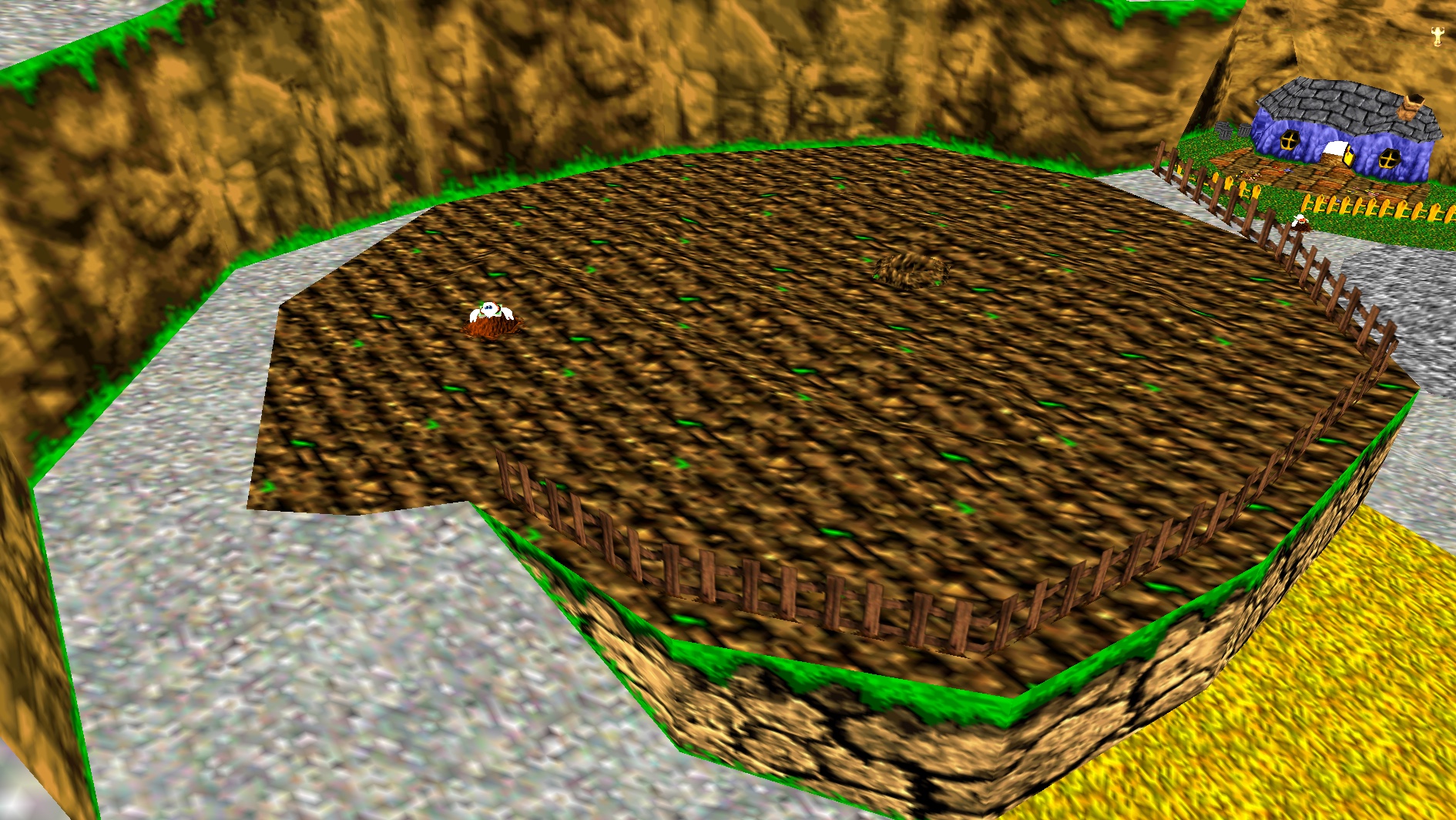

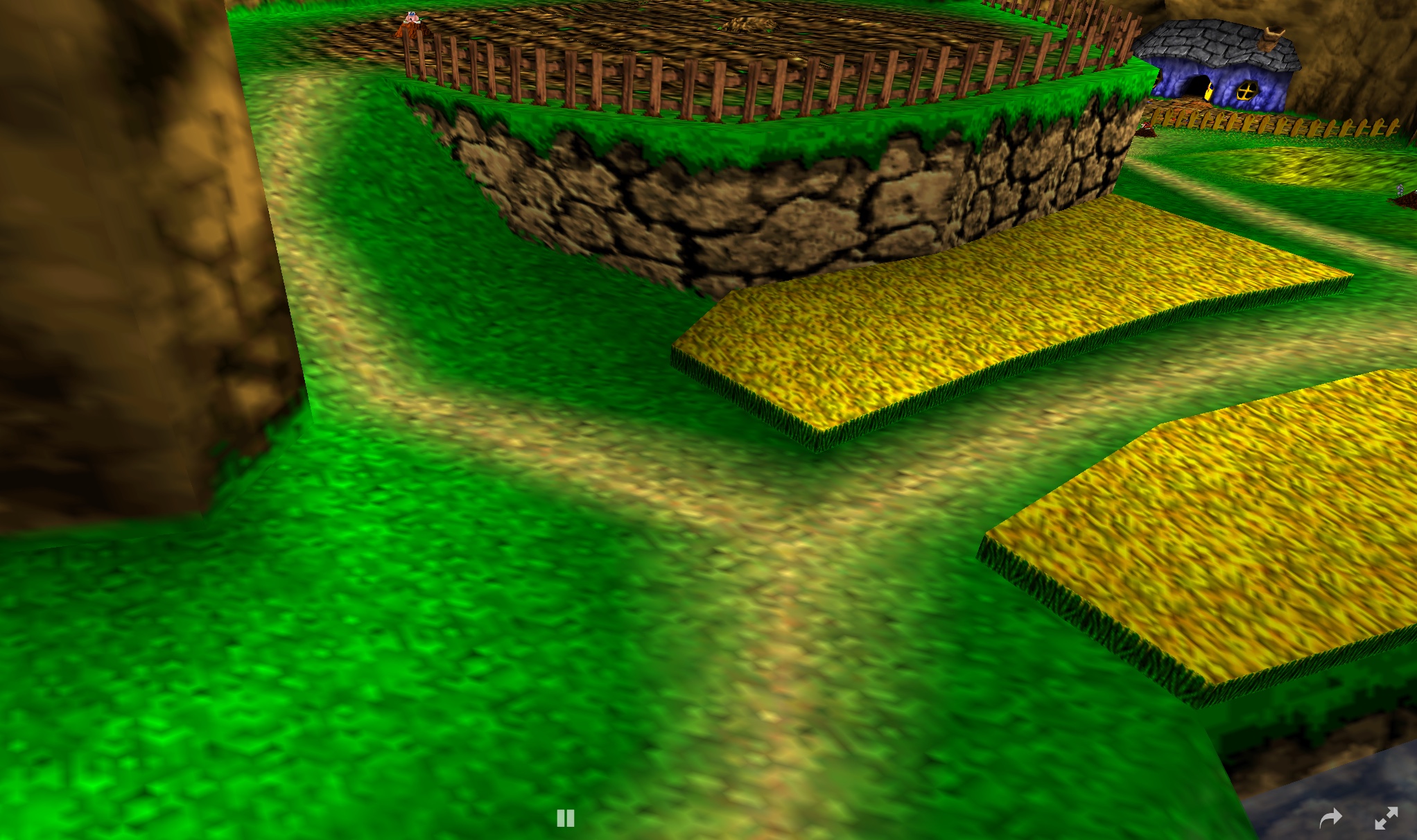

Banjo Kazooie’s Spiral Mountain, vertex colors disabled. You can see the texture blending between the road, the terrain and the farm plot is gone. The path (which is also painted with vertex colors) is also gone.

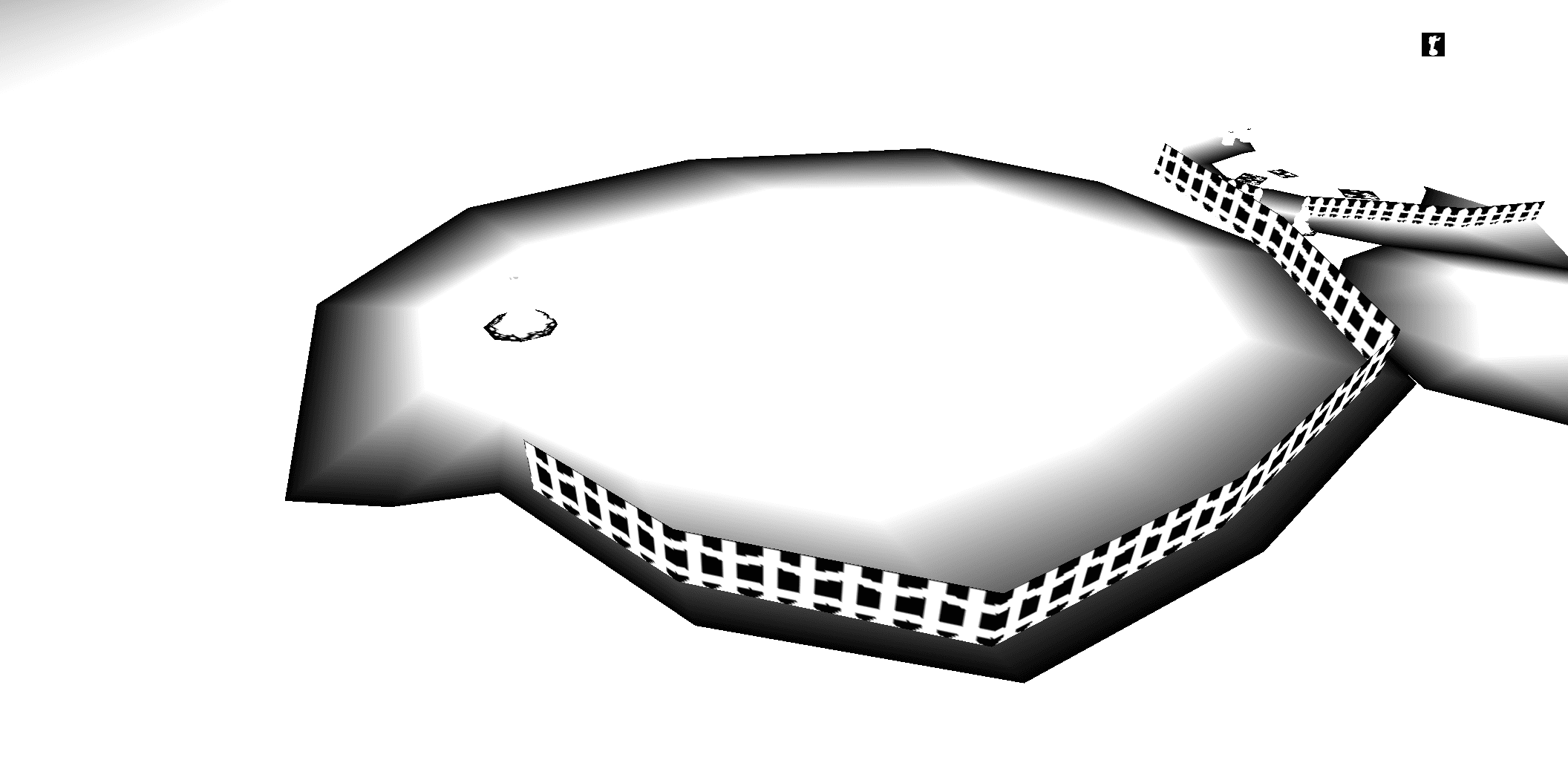

noclip.website allows inspecting the vertex color alpha. This is what it looks like for the same scene:

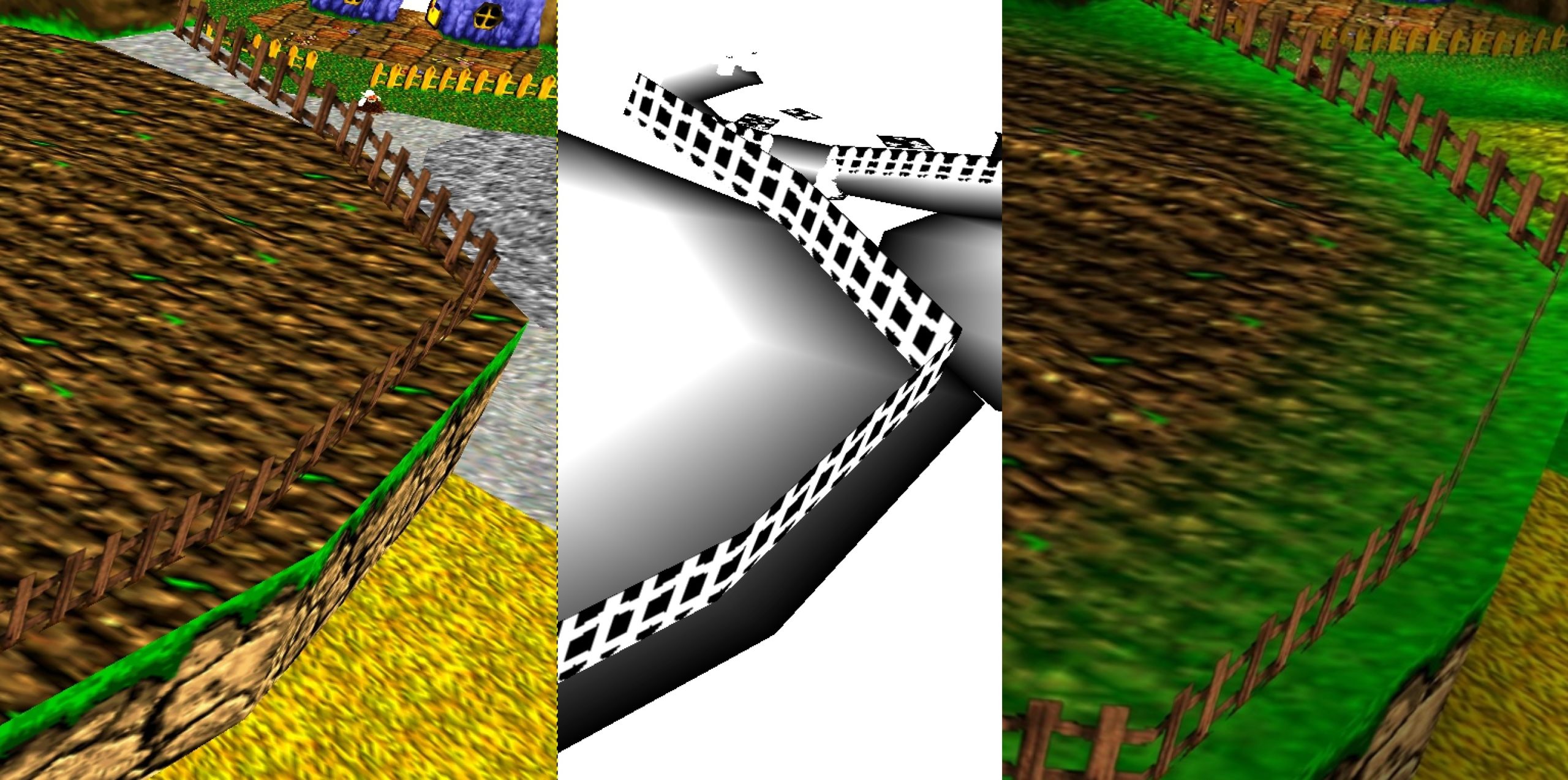

Now for a comparison of everything side by side. Notice how the vertex alpha blends the farm plot texture and the terrain texture:

Vertex Colors: details, fake light, shadow and ambient occlusion

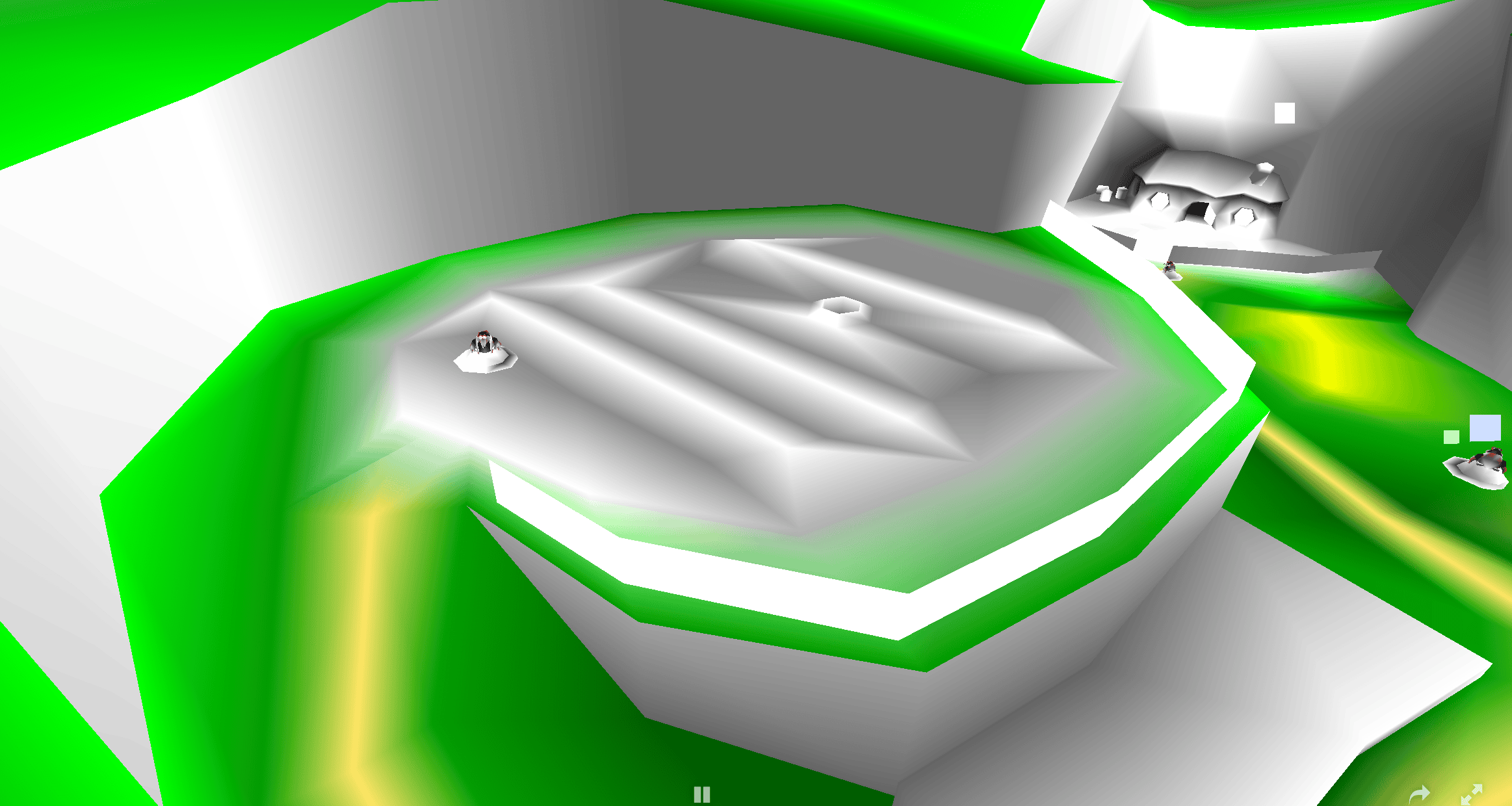

An inspection of the vertex colors reveals the grass color and the yellow path, as well faked lights, shadows and ambient occlusion (again, thanks to noclip.website):

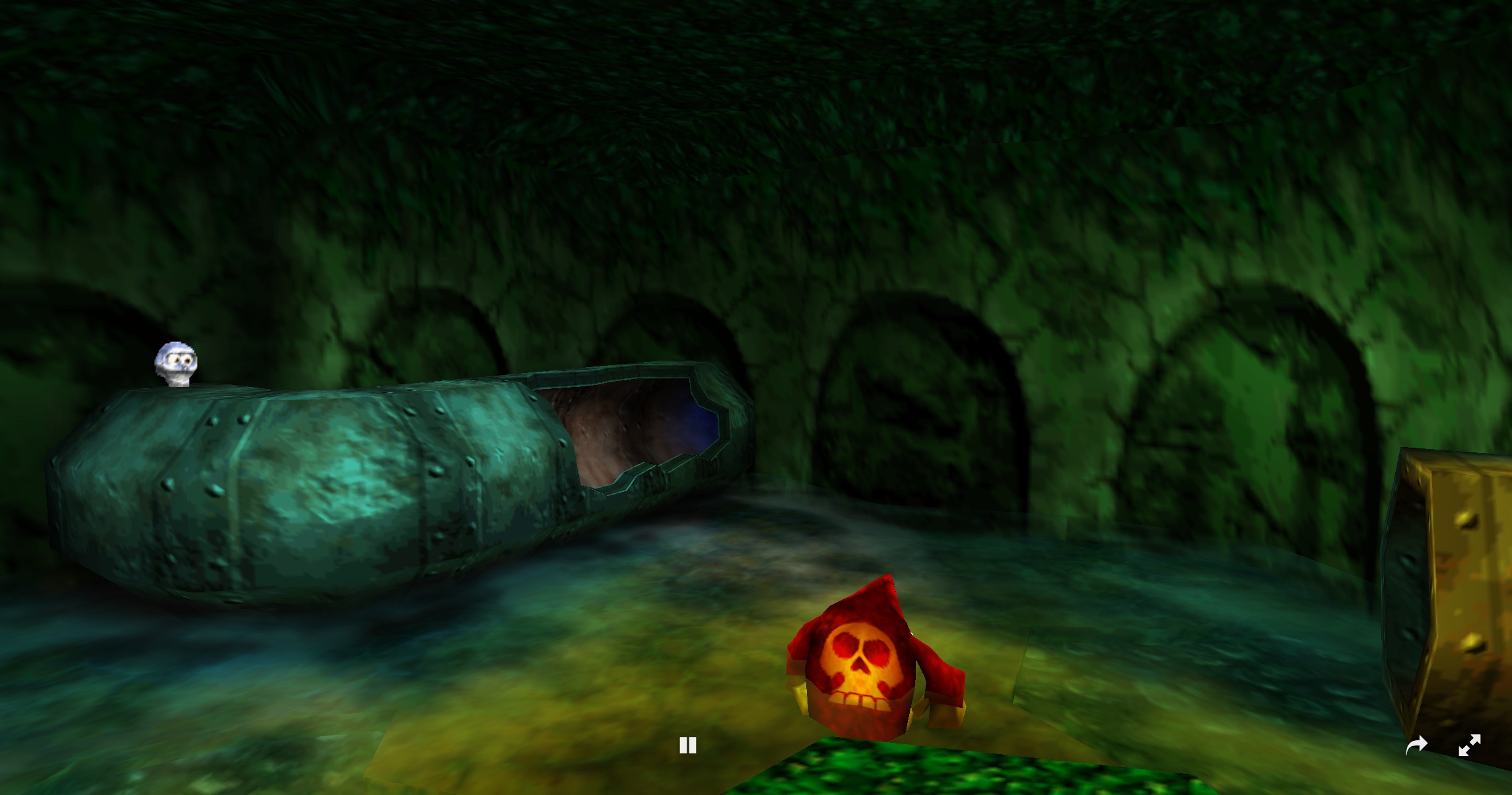

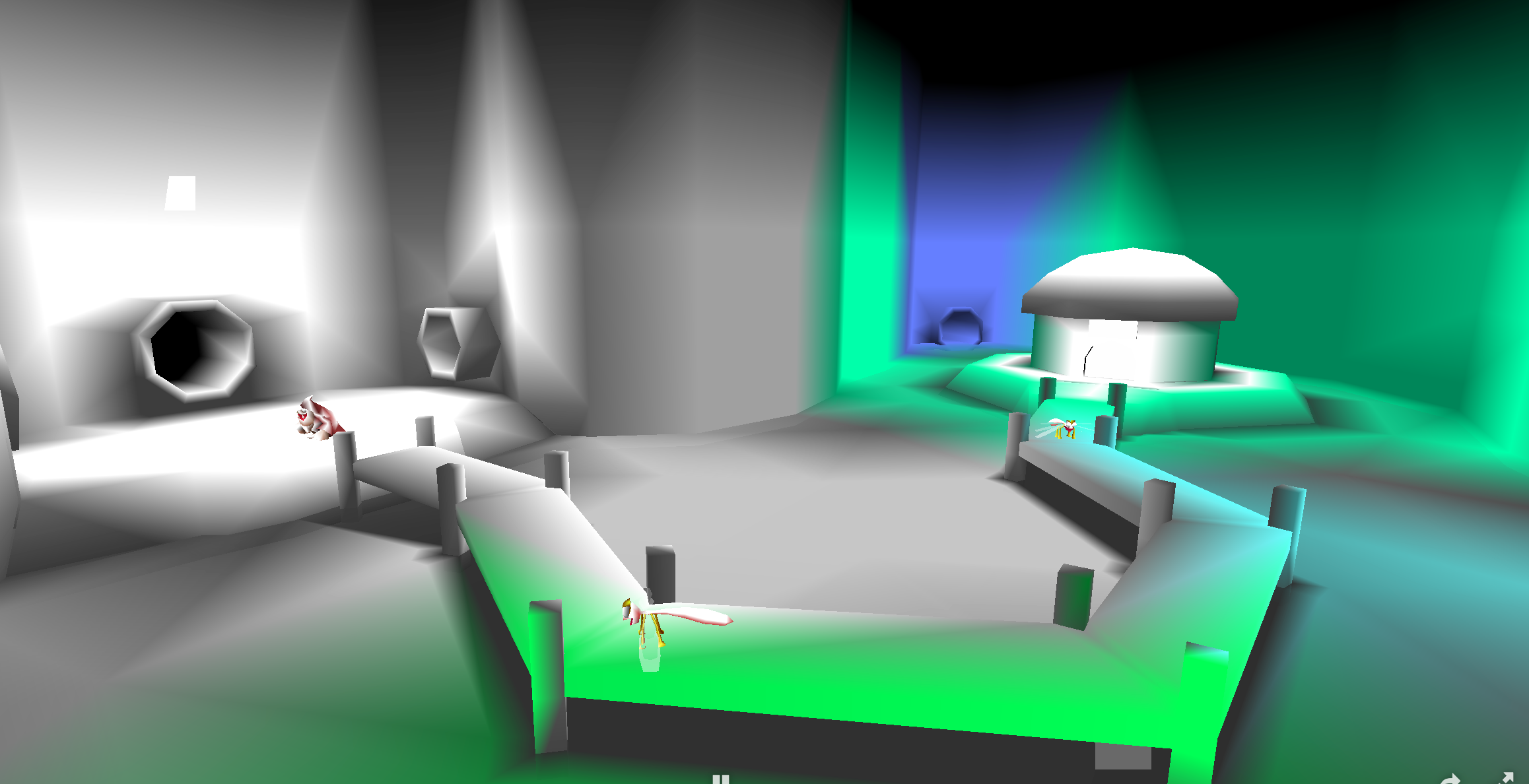

In a closed environment, this is what the vertex color looks like:

Textures

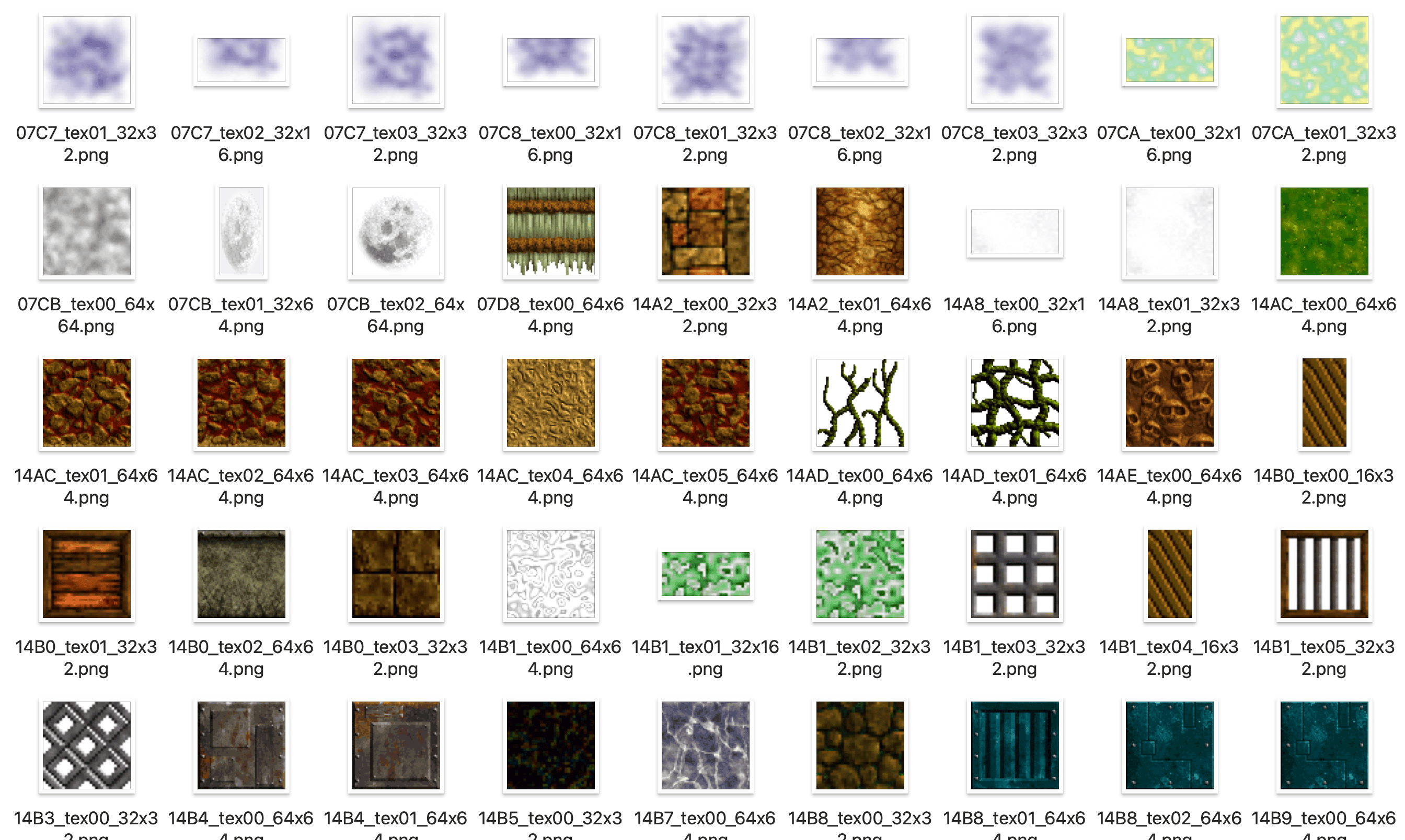

Banjo Kazooie makes use of all the Nintendo 64’s texture capabilities and formats, but from my quick observations, the majority of textures used in the game’s environments are:

32×32 (32-bit)
64×64 (16 colors)
32×64

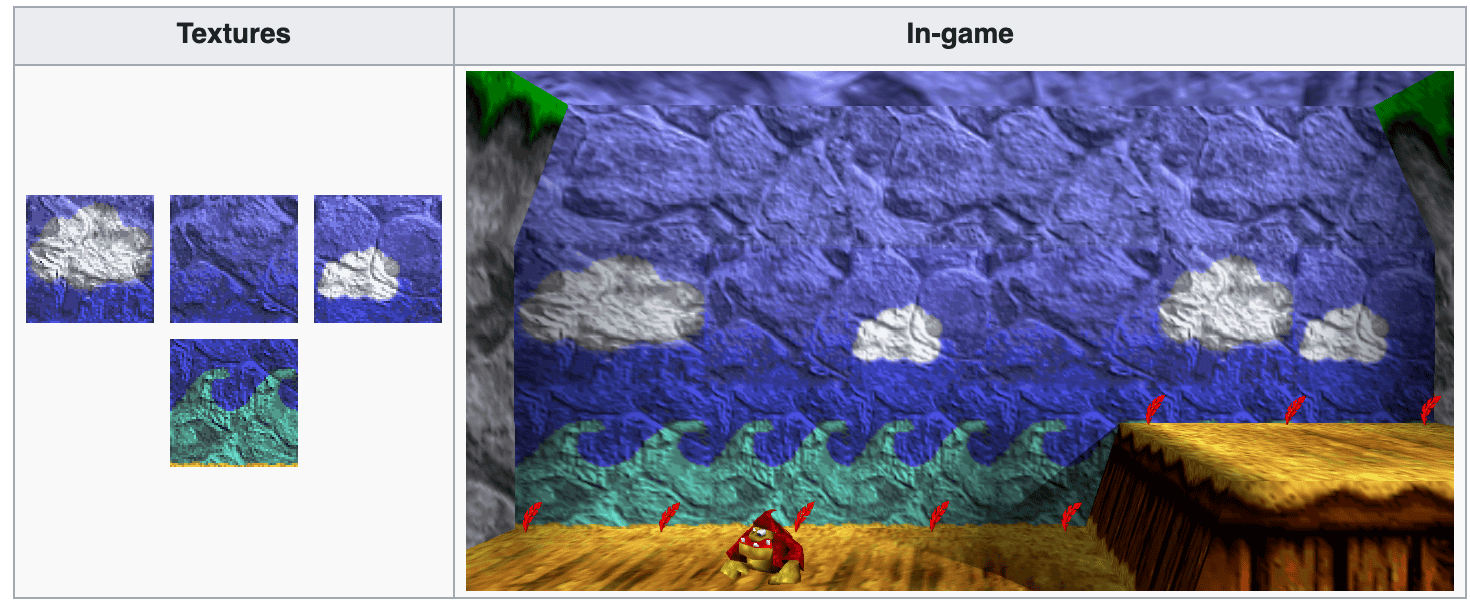

In order to show more details, it also makes heavy usage of multi-segment 64×64 textures:

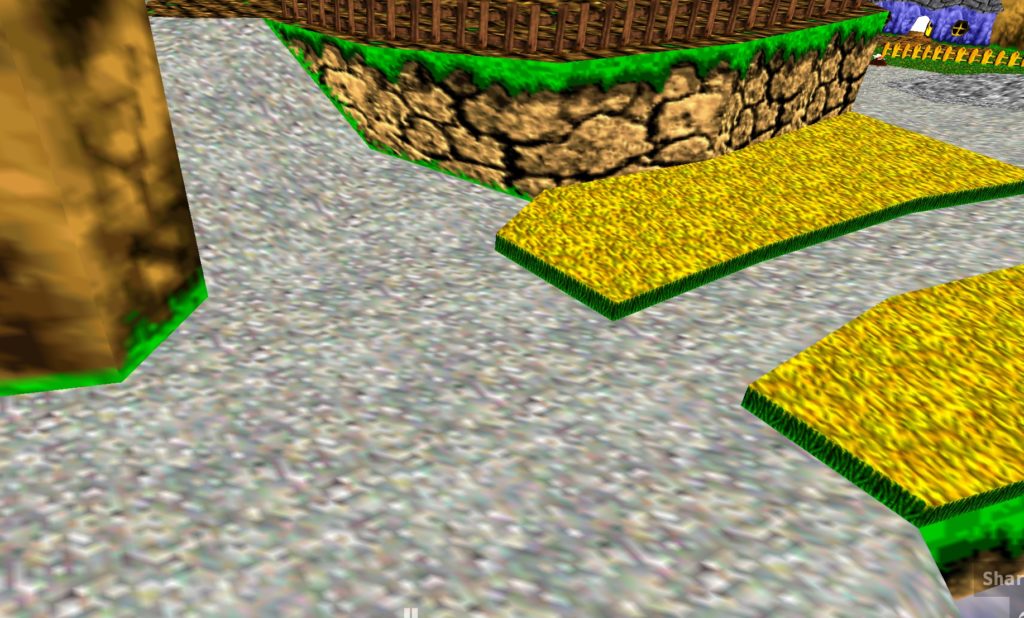

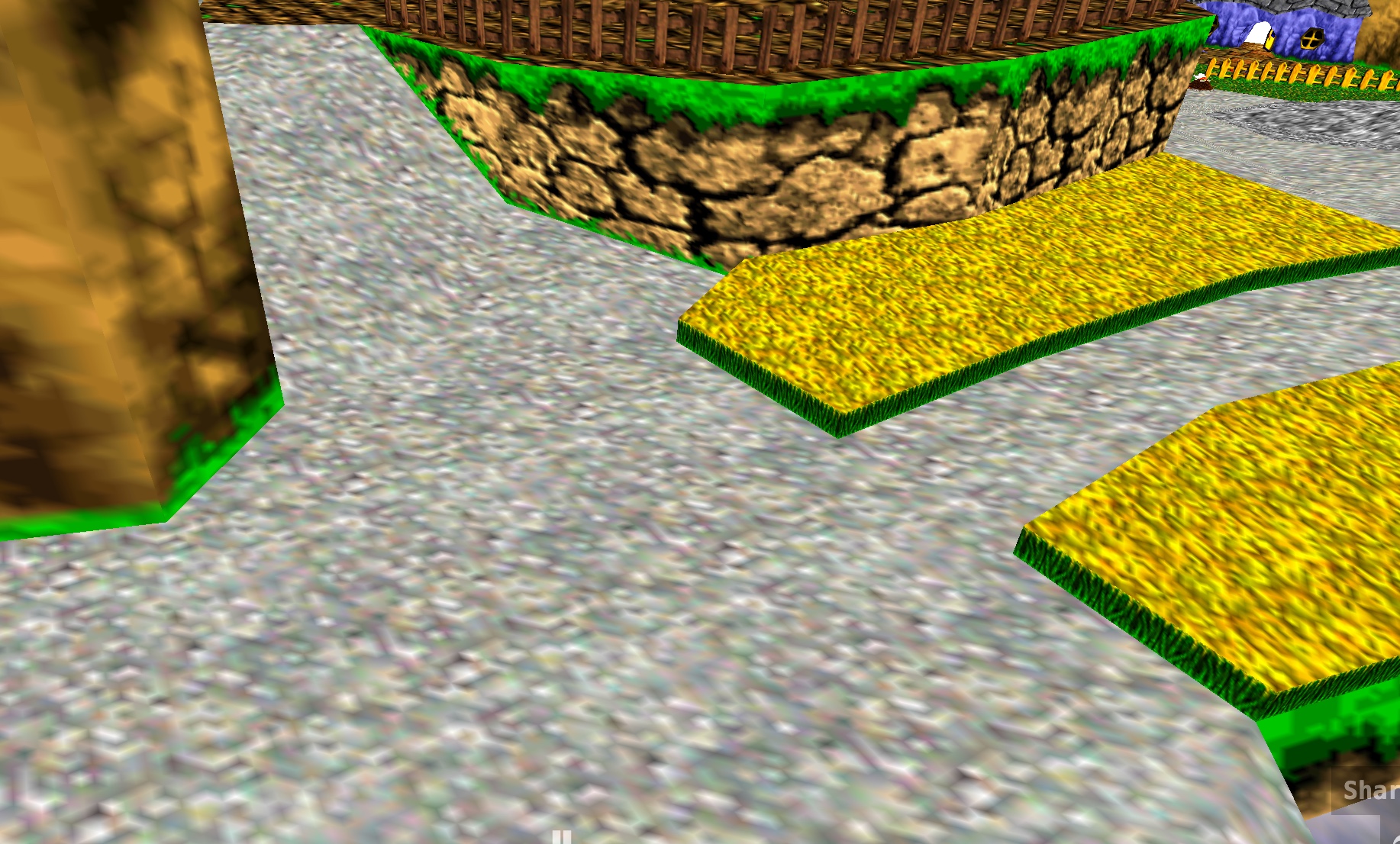

There’s also the usage of noise and alpha textures. If we go back again to the first screenshot example, the game uses a 32×32 noise texture for most of Spiral Mountain:
